Signal light pole refers to the rod for installing traffic signal lights. It is the most basic part of road traffic equipment. Today, signal light pole factory Qixiang will introduce its classification and common installation methods.
Classification of signal light poles
1. From the function, it can be divided into: motor vehicle signal light pole, non-motor vehicle signal light pole, pedestrian signal light pole.
2. From the product structure, it can be divided into: column type signal light pole, cantilever type signal light pole, gantry type signal light pole, and integrated signal light pole.
3. From the production process, it can be divided into: octagonal pyramid signal light pole, flat octagonal cone signal light pole, conical signal light pole, equal diameter square tube signal light pole, rectangular square tube signal light pole, and equal diameter round tube signal light pole.
4. From the appearance, it can be divided into: L-shaped cantilever signal light pole, T-shaped cantilever signal light pole, F-shaped cantilever signal light pole, frame signal light pole, special-shaped cantilever signal light pole.
Installation method of signal light pole
1. Column type
Column type signal light poles are often used to install auxiliary signal lights and pedestrian signal lights. Auxiliary signal lights are often installed on the left and right sides of the parking lane; column type pedestrian signal light poles are installed at both ends of pedestrian crossings. T-shaped intersections can also be equipped with column-type signal light poles.

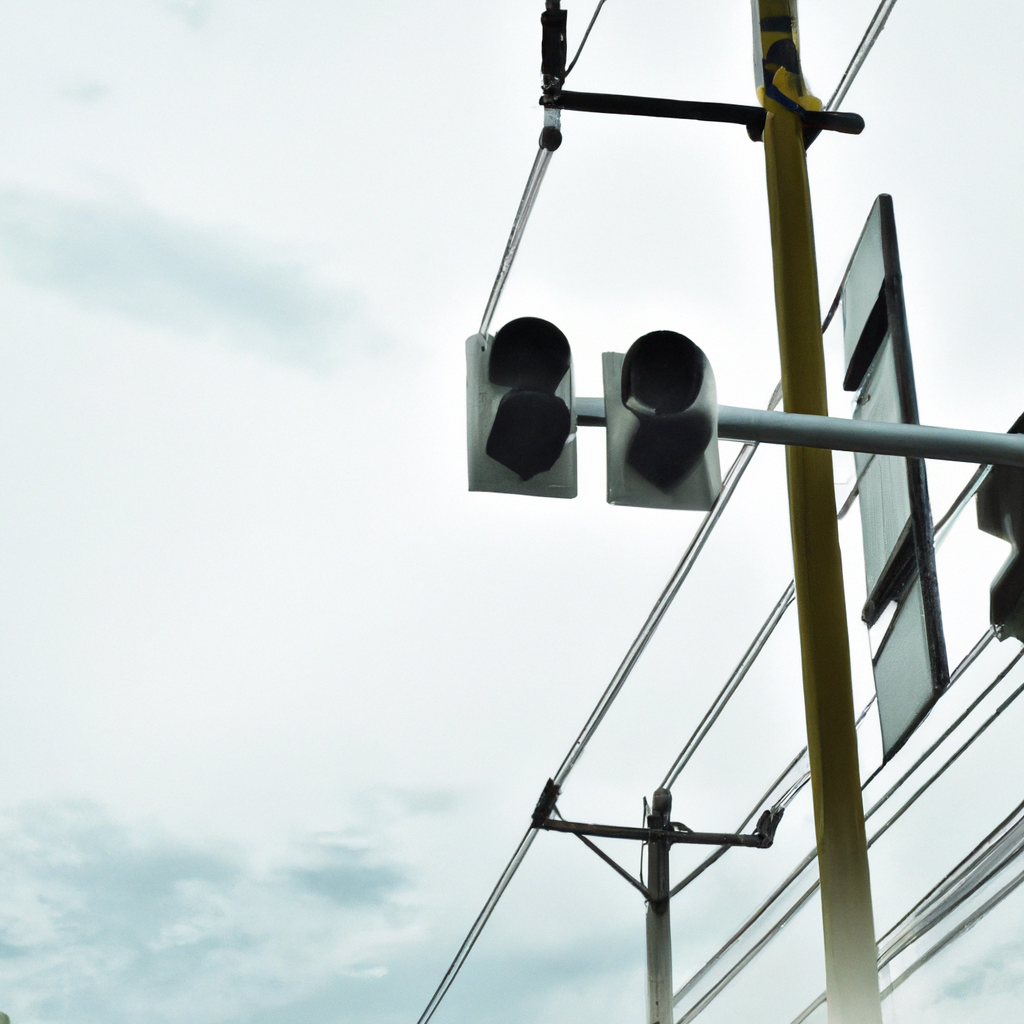

2. Cantilever type
The cantilever signal light pole is composed of a vertical pole and a cross arm. The common pole types include octagonal taper L pole, circular taper L pole, equal-diameter round tube L pole, equal-diameter round tube F pole, combined frame pole, single-handed curved arm rods, antique landscaping rods, etc. With the development of the city, the roads are getting wider and wider. In order to meet the requirements of the installation position of the signal lights, more and more cantilever signal light poles are used. The advantage of this installation method lies in the installation and control of signal equipment at multi-phase intersections, reducing It reduces the difficulty of laying engineering power, especially at messy traffic intersections where it is easier to plan a variety of signal control schemes.
3. Double cantilever type
The double cantilever signal light pole consists of a pole and two cross arms. It is often used with main and auxiliary lanes, main and auxiliary roads or T-shaped intersections. The two cross arms can be horizontally symmetrical or angled, which solves the needs of some messy intersections. Repeat the trouble of installing the signal lamp pole, and it can be used for multiple purposes.
4. Gantry type
The gantry type signal light pole is often used in the situation where the intersection is wide and multiple signal devices are required to be installed at the same time. It is often used at the entrance of tunnels and urban areas. the
Maintenance method of signal light pole
1. Inspection door: Maintenance personnel should regularly check the loss and damage of the inspection door. When lost or damaged, the anti-theft bolts can be replaced, and the words “electricity hazard” can be printed on the inspection door cover.
2. Cantilever connection bolts: Check the connection bolts in time for rust, cracks, etc., and replace them in time if such phenomena occur.
3. Anchor bolts and nuts: Similarly, the conditions of the anchor bolts and nuts should be checked regularly. In practical applications, the method of concrete encapsulation can be used to treat the anchors to ensure anti-corrosion.
